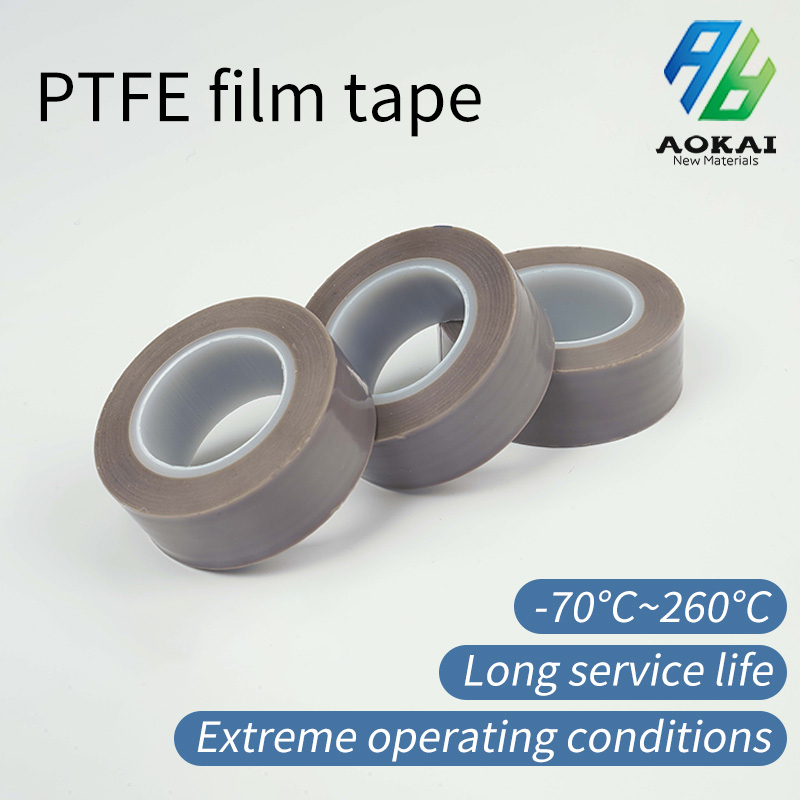

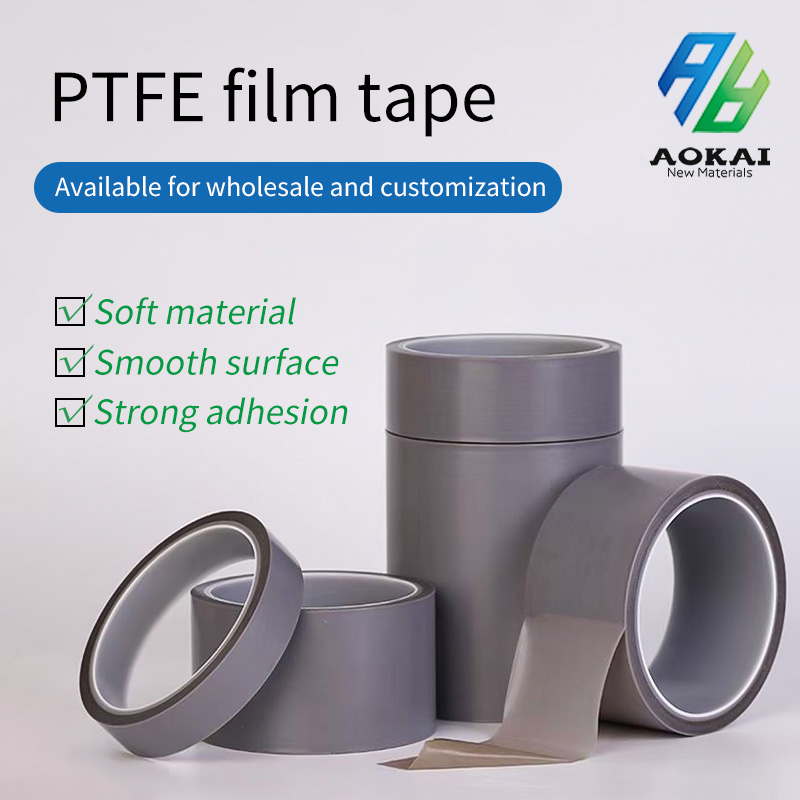

PTFE Film Tape
PTFE Film Tape is polytetrafluoroethylene (PTFE) film-based tape, single surface treated with silicone adhesive, which offers a wide temperature resistance range from -54℃(-65℉) to 260℃(500℉).
PTFE extruded film tape has a non-stick and abrasion-resistant surface, making it a quick-release barrier between characters where pressure and temperature change.
PTFE extruded film tape helps to reduce friction and machinery noise. Compared with normal PTFE skived film tape in the market, our PTFE skived film tape services longer under high temperatures and does not leave residual adhesive when peeling off after use.
The Advantage of PTFE Skived Film Tape
- PTFE film offers nonstick surface for easy clean-up
- Continuous high temperature resistant reach to 260℃(500℉)
- High adhesion under high heat
- Good chemical resistance in harsh environment
- High abrasion resistant ensure good friction reduction
- High strength and adhesion
- No residual adhesive on machine after using
- Superior mould releasing and sliding property
- Excellent electrical property
- Superior mould releasing and sliding property
Application of PTFE extruded film tape
- Wire bonding under high temperature
- Covering the pressure part in heat sealing machine
- Wrap roller for printing machine to prevent ink build up
- Lining friction surface of chutes, toughs
- Mold release for composite laminating
- Shielding against chemicals
- Insulation cover for cable assemble
| Series | Part Number | Colour | Overall Thickness （mm） | Standard width (mm) | Base cloth Gram weight (g/㎡) | Tensile Strength （N/25mm） | Adhesion 180 ° peel （N/25mm） | Breakdown Voltage (Kv) | Antistatic Index |
|---|---|---|---|---|---|---|---|---|---|
| M | M006H | Grey | 0.06 | 300 | 120 | 60 | 5 | 8 | - |
| M006BK | Black | 0.06 | 300 | 120 | 60 | 5 | - | 10^7-10^5 | |
| M008H | Grey | 0.08 | 300 | 150 | 90 | 6 | 10 | - | |
| M008BK | Black | 0.08 | 300 | 150 | 90 | 6 | - | 10^7-10^5 | |
| M013H | Grey | 0.13 | 420 | 260 | 160 | 8 | 15 | - | |
| M013BK | Black | 0.13 | 420 | 260 | 160 | 8 | - | 10^7-10^5 | |
| M013W | White | 0.13 | 600 | 260 | 160 | 8 | 15 | - | |
| M018H | Grey | 0.18 | 600 | 350 | 250 | 9 | 18 | - | |
| M018BK | Black | 0.18 | 600 | 350 | 250 | 9 | 18 | 10^7-10^5 |
