PTFE Fiberglass Tape
PTFE structures PTFE impregnated fiberglass tape applied with pressure-sensitive silicone adhesive on one side; the main features of PTFE Fiberglass Tape coated with Teflon PTFE are excellent release surface, high-temperature resistance up to 260°C( 500°F) and strong adhesion under high heat.
Our PTFE coating is imported from Japan, providing quick release, abrasion resistance, and a smooth surface.
The basic material is woven fiberglass fabric, making the PTFE-impregnated fiberglass tape tear resistant. Pressure-sensitive adhesive is imported from the USA, with relatively lower initial adhesion but higher adhesion under high heat; the bond will not produce residual on the peeled peel-off machine.

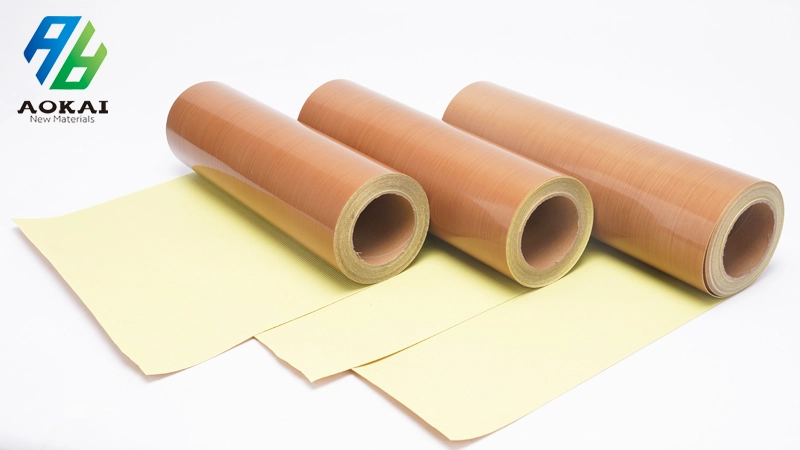

PTFE fiberglass tape can be with or without yellow release paper on the back, normally jumbo rolls like 1m x 50m and 1m x 30m with liner on the back, and small rolls like 25mm x 10m, 50mm x 10m may work with or without liner.
The Advantage of fiberglass tape coated with Teflon PTFE
- The extreme heat and cold resistance from -73-260℃(-100-500℉)
- Excellent quick release from sticky materials
- No residual adhesive on the machine, and it is easy to clean
- High tensile strength, low coefficient of friction
- UV, Infra-Red, and microwave resistance
- Low Thermal Expansion: < 5%
- Excellent chemical inertness
- FDA-approved can be used in the food industry
Applications of PTFE Fiberglass Tape
- Covering tape for sizing cylinders for the dyeing machine
- Heat sealing PTFE coated fiberglass tape of plastic films for a vacuum sealer and impulse sealer
- Fiberglass tape coated with Teflon ptfe for Laminating sheet for laminating machines
- Covering sheet for friction areas of hoppers, chutes, and guide rails
- Insulation coverings of wire connections.
| Series | Part Number | Colour | Overall Thickness （mm） | Standard width (mm) | Base cloth Gram weight (g/㎡) | Tensile Strength （N/25mm） | Adhesion 180 ° peel （N/25mm） | Breakdown Voltage (Kv) | Antistatic Index |
|---|---|---|---|---|---|---|---|---|---|
| GP | GPS013C | Brown | 0.13 | 1000/1250 | 155 | 360 | 9 | 6 | - |
| GPS013BK | Black | 0.13 | 1000/1250 | 155 | 400 | 10 | - | 10^7-10^5 | |
| GPS015W | White | 0.15 | 1000/1250 | 200 | 500 | 10 | 6 | - | |
| GPA016C | Brown | 0.16 | 1000/1250 | 220 | 530 | 11 | 6 | - | |
| GPA016BK | Black | 0.16 | 1000/1250 | 220 | 600 | 12 | - | 10^7-10^5 | |
| GPE017C | Brown | 0.17 | 1000/1250 | 250 | 680 | 11 | 6 | - | |
| GPE017BK | Black | 0.17 | 1000/1250 | 250 | 700 | 12 | - | 10^7-10^5 | |
| GPS018C | Brown | 0.18 | 1000/1250 | 270 | 730 | 13 | 6 | - | |
| GPS018BK | Black | 0.18 | 1000/1250 | 270 | 730 | 13 | - | 10^7-10^5 | |
| GPS020C | Brown | 0.20 | 1000/1250 | 316 | 820 | 12 | 6 | - | |
| GPS023C | Brown | 0.23 | 1000/1250 | 370 | 880 | 13 | 6 | - | |
| GPS023BK | Black | 0.23 | 1000/1250 | 370 | 780 | 13 | - | 10^7-10^5 | |
| GPS025C | Brown | 0.25 | 1000/1250 | 410 | 915 | 12 | 6 | - | |
| GPS028C | Brown | 0.28 | 1000/1250 | 500 | 980 | 13 | 6 | - | |
| GPS028BK | Black | 0.28 | 1000/1250 | 500 | 990 | 13 | - | 10^7-10^5 | |
| GPS030C | Brown | 0.30 | 1000/1250 | 530 | 1050 | 14 | 6 | - | |
| GPS030BK | Black | 0.30 | 1000/1250 | 530 | 1080 | 14 | - | 10^7-10^5 | |
| GPS035C | Brown | 0.35 | 1000/1250 | 625 | 1450 | 14 | 6 | - |
